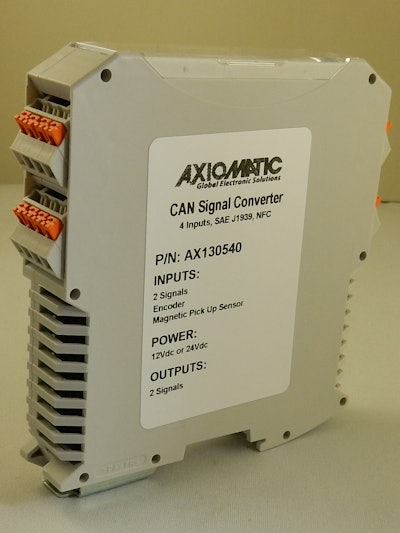

Axiomatic releases its latest DIN rail mount controller, the AX130540, a dual channel signal converter with isolated CAN SAE J1939 for engine applications.
- Features four-way isolation between inputs, outputs, power and the SAE J1939 CAN port to prevent damaging voltage from passing through into connected systems
- Minimizes effects of electrical noise
- Accepts broad range of input signals
- Two inputs are selectable as voltage or current analog, resistive, PWM/Frequency or Digital signals
- Includes Magnetic Pick Up input and Encoder input
- Two outputs are configurable as analog voltage (0-5V, 0-10V, +/-5V, or +/- 10V); analog current (4-20 mA, 0-20 mA); or PWM signal
- Accepts 12V DC or 24V DC nominal power
- Provides reference voltage (+5V) to power sensor inputs
- Operates from -40-85 C (-40-185 F)
- IP20 rated
- Features two LED indicators
- Compatible with standard 35 mm (1.4 in.) DIN rail
- Simple configuration can be achieved using an Android Smart Phone application
- Complex control logic can be configured using Axiomatic Electronic Assistant
