Walvoil CED1200S Control Unit for Safety Related Applications

At bauma 2019, Walvoil will exhibit its CED1200S featuring Hardware Category 2, enabling use in applications up to Performance Level D/SIL 2.

February 21, 2019
Walvoil S.p.A.

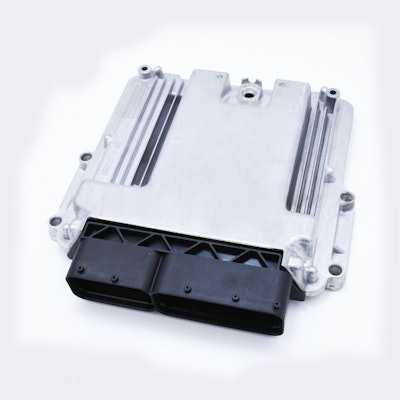

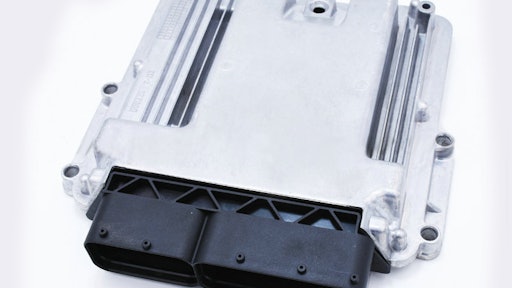

Walvoil Ced1200 S
Walvoil

The CED1200S from Walvoil is the first component of a new family of control units designed for safety related applications.

  • Features Hardware Category 2, enabling use in applications up to Performance Level D/SIL 2
  • Programmable according to IEC 61131-3 standard with PHC Studio Integrated Development Environment (CED1200W)
  • Completely sealed and protected against water and dust ingress (IP67/IPx9K)
  • All PWM power outputs are available with current closed loop for applications with proportional pressure reducing valves
  • Suitable for 12V and 24V applications thanks to 8–32V power supply input range
  • Includes 24 general purpose inputs (analog, digital, frequency), two CANbus ports and 5V sensors supply output
