dSPACE SCALEXIO LabBox

dSPACE's SCALEXIO LabBox is compact enough to fit on developers' workspace and provides slots for up to 18 I/O boards.

September 30, 2016

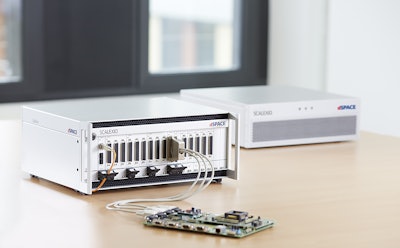

dSPACE PR Image SCALEXIO LabBox 1000px RGB 160920 57eead4749ef9

Dspace 10055308

With the SCALEXIO LabBox, dSPACE offers a compact, high-performance system for hardware-in-the-loop (HIL) tests. T

Fits on every desk and can be used for early function tests right at developers’ workplace
Provides slots for up to 18 I/O boards which can be conveniently replaced at front side of the box
More LabBoxes or Processing Units can be added by users if more I/O or computing power is needed
Connects to Processing Unit via dSPACE-proprietary IOCNET network technology which was developed and optimized specifically to meet requirements of real-time applications
I/O boards cover entire range of functions, from simple digital or analog I/O, to complex I/O functions for engine simulation and automotive bus systems
Boards can be configured in dSPACE ConfigurationDesk, making it possible to quickly modify system according to changing project requirements and decrease iteration times
Configurations created in ConfigurationDesk can be reused later with larger SCALEXIO HIL simulators

Fill out the form below to request more information about dSPACE SCALEXIO LabBox
