Hengli HVSP Load Sensing Proportional Control Valve with CANbus Pilot Control Module

December 8, 2016
Hengli America Co. Inc.

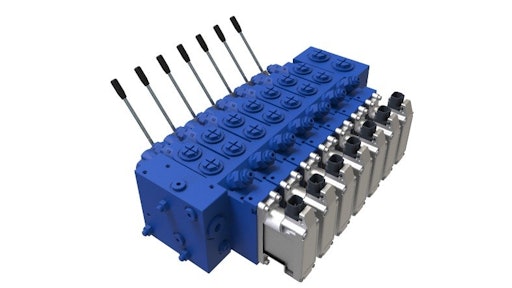

HVSP Load Sensing Proportional Control Valve
Hengli
LOGO 01 578d7b89ec927

Hengli offers HVSP proportional valves with integrated, intelligent electronics providing full integration into the bus network of mobile machinery with IP68 protection.

  • Internal closed loop position design achieves spool position accuracy levels nearing the performance of a servo-valve
  • Up to 10 sections
  • High peak pressure rating: 350/420 bar (5,040/6,048 psi)
  • Individual load independent flow control via section pressure compensators
  • Low hysteresis
  • Manual override
  • Flow: Inlet maximum 150 lpm (39.6 gpm) (with valve compensators)
