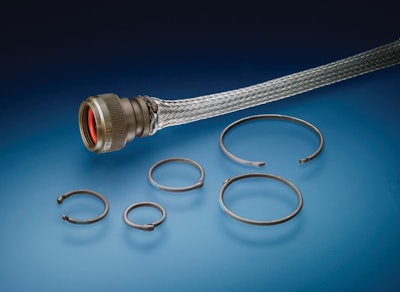

TE Connectivity (TE) introduces the side entry Tinel-Lock ring, a heat recoverable metal braid terminator which provides a method of joining a gross cable or harness shield to a customer-built connector backshell or other termination device without prepositioning the ring on the harness.
- Uniform recovery force generated gives termination good mechanical and electrical properties, resulting in high performance
- A shape-memory ring type
- Features low profile and is buckle-free while providing re-enterable high-performance screen termination
- Can be used for harness-over-braid termination and cable screen termination to Tinel-Lock adapter
- Easily removable
- Low DC connection provides 360-degree shielding termination
- Operates between -65 and 200 C
- Can be installed in seconds using either a resistance heater or a simple heat gun
- Thermochromic paint applied to the ring changes color to indicate when heated to full recovery
- Made with nickel-titanium
- Pull-off force for sizes 04–08 is 100 lbs. nominal, while size 10 and above is 150 lbs. nominal
