Selecting the right battery for an application can seem like a complex task, and the technical jargon that can come with it doesn’t always help. But don’t let this be a barrier to efficient and cost-effective equipment electrification. The reality is that understanding a few key principles can empower professionals, regardless of their technical background, to make informed decisions when looking to electrify equipment. Keep reading to understand the essentials of battery sizing so you can make sure your equipment has the power it needs to perform.
Understanding Your Application's Load Requirements
The journey to the perfect battery begins with a single, fundamental question: What exactly are you powering? More specifically, though, we need to understand the energy and power needed to do the task at hand.
Think power and energy are interchangeable? You wouldn’t be alone. For the electrification process, they have to be evaluated separately. Think of a battery like the gas tank in a car: You need to know how much fuel you need (energy) and how fast you'll need to use it (power).

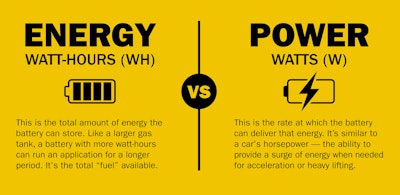

Power vs. Energy
Let’s dig deeper into the crucial differences between power and energy. An application can only succeed with the right balance of both.
Vanguard

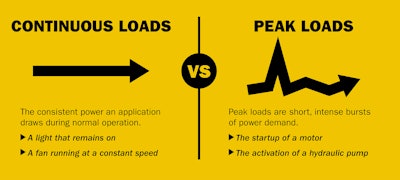

Continuous and Peak Loads and the Rhythm of Operation
Now that we've distinguished between the "what" (energy) and the "how fast" (power), let's look at how an application actually uses that power. An application's power draw is rarely constant; it fluctuates based on the work being completed. Because of this, it's important to consider both continuous and peak loads and how they relate to the application's duty cycle.
VanguardContinuous loads are the consistent power an application draws during normal operation, like a light that remains on or a fan running at a constant speed. This can be thought of as the steady marathon pace of your equipment. Understanding the continuous load is vital to ensure that your application can operate smoothly for the required duration.
Vanguard
Peak loads are short, intense bursts of power demand that go far beyond the continuous level. Examples include the startup of a motor, the activation of a hydraulic pump or the sudden acceleration of an electric vehicle. These are the powerful sprints your equipment needs to perform. Some applications will be inherently "peaky" due to frequent starting, stopping and navigating inclines. Others that perform a single consistent task will have a much flatter load profile.
Recognizing whether your application's performance life is a marathon, a series of sprints or a mix of both is key. The most critical “real-world factor” to consider is your equipment's duty cycle — its actual rhythm of operation. Understanding this pattern is crucial for matching the battery to the task.
Different pattern cycles include:
Continuous — The application runs steadily for an extended period, such as an 8-hour shift.
Intermittent — The application is used for short periods with breaks in between, like a tool used for five minutes every hour.
Pulsed — The application is mostly idle but has short, intense bursts of activity.
A clear picture of your duty cycle prevents over-engineering and ensures that the battery you choose is optimized for its actual use.
From Concepts to Calculations: Sizing Your Battery
Understanding these load patterns is helpful, but to size a battery correctly, these concepts must be translated into concrete numbers. To determine the right battery size, you first need to calculate the usable energy your application requires. The formula is straightforward:
VanguardHowever, the rated energy on a battery's label is not the same as its usable energy. This brings us to depth of discharge (DoD). The DoD is the percentage of a battery's total energy that can be safely used without degrading its long-term health. This percentage varies depending on the battery's chemistry and the application's demands. To calculate the total battery energy required, apply this formula:
Vanguard
For example, using a 90% DoD, if you calculate you need 1.25 kWh of usable energy, you would require a battery with a rated capacity of 1.38 kWh (1.25kWh ÷ 0.90).
Decoding C-Rates and Duty Cycles for a Deeper Understanding
Beyond just the total energy required, the rate of energy use and the pattern of operation are equally critical for selecting the right battery. This is where C-rates and duty cycles come into play. Stay with us — this is where it gets good!
Understanding C-Rates
The C-rate indicates how quickly a battery can be charged or discharged relative to its DoD. But it's not just about speed; higher C-rates generate more heat and can put more stress on a battery, potentially affecting its lifespan. Different battery chemistries handle high C-rates differently, making this an important factor in selection.
As a practical tool, the C-rate offers a quick estimate of runtime — a 1C rate suggests about an hour of use, while a 2C rate implies 30 minutes. This is only a rough guideline, however, as real-world factors like temperature and the battery's state of charge will alter performance. It's also crucial to know that for charging, the C-rate isn't constant; to protect the battery’s health, it will slow down significantly as it approaches a full charge.
VanguardFixed vs. Swappable Batteries
The first major hardware choice is whether the battery will be a permanent, fixed part of the equipment or a swappable component. The right answer depends entirely on the use case you've already defined.
Does your duty cycle demand continuous operation with no time for charging? A system of swappable batteries, allowing a depleted battery to be instantly exchanged for a fresh one, is the clear solution.
Does your operational rhythm include predictable lulls, breaks or an end-of-shift period where the equipment can be parked and plugged in? A fixed battery, often more integrated and cost-effective, becomes the most practical choice.
Vanguard
Exploring Charging Solutions
Whether a battery is fixed or swappable, it will eventually need to be recharged. This brings us to the final, critical piece of the puzzle: the charging solution. The right battery is only effective with the right charger. Key considerations include:
Charge time — How quickly does the battery need to be recharged to meet operational demands? This ties back directly to the C-rate.
Charger type — Will an onboard charger be integrated into the equipment or an external, off-board charger be more suitable for the workflow?
Power source and infrastructure — Where will the power come from? Beyond the outlet type, it's critical to ensure that your facility's electrical infrastructure can support the demand of one or multiple chargers without costly upgrades.
Smart charging — Modern chargers with smart features can protect a battery's health by optimizing the charging process. This extends the battery's life and ensures safe, efficient operation.
From distinguishing between power and energy to calculating your true needs based on your unique duty cycle and finally to selecting the physical hardware and charging systems — you now have a complete framework.
By understanding these core principles, you're now better equipped to make informed battery choices for your equipment. But remember, you don't have to navigate this journey alone. Vanguard is here to be your partner, providing expert guidance and support every step of the way to help you find the perfect battery solution.
