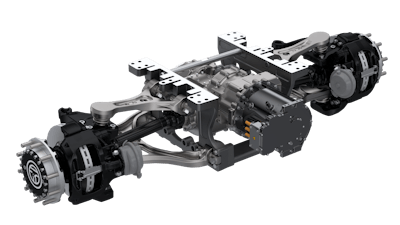

The T-9000e powertrain is designed for series hybrid and all electric, heavy duty wheeled vehicles. With a peak output power of 208kW per axle, combined with the ability for individual power and torque control of each axle, the rubber really hits the road.
This T-9000e is engineered specifically for heavy duty, off-road vehicle applications. The smooth shifting, fully integrated, 3-speed gearbox ensures smooth and consistent delivery of tractive effort at the wheels over the toughest of terrains. Combined with our high-performing, double wishbone independent suspension and planetary drive wheel ends, the T-9000e provides performance for off-road vehicles, ensuring best in class safety, mobility and drivability.
Compatible with any fuel source that can be used to generate sufficient electricity, the T-9000e provides the ideal means of electrifying your vehicle.
The T-9000e axle includes an integrated power take-off (PTO) that can be configured for accessories such as driveline parking brakes, emergency steering pumps and exported power. With this patented feature, any or all axles can be fitted with a parking brake, providing superior parking brake performance. The number of parking brakes required is defined during the Timoney Application Approval process.
T-9000e Specifications
- Gross Axle Weight Rating (GAWR): 9,500kg
- Ratios Subject to application approval
- Peak Output Power 208kW (280HP)
- Suspension Travel Up to 400mm
- Steering Backlock Up to 37°
- Driver controlled differential lock
Minimum Rim Size 20" - Ground Clearance (16 R20 tyres): 488mm
- System Weight is Application dependent
ABS and CTIS ready
T-9000e Features and Benefits
- Axle with integrated motor, smooth shifting, 3-speed gearbox:
- Provides continuous tractive effort at the wheel.
- Ability to control the power and torque at each individual axle.
- Compatible with any fuel source that can be used to generate electricity, the T-9000e provides the ideal means of electrifying your vehicle.
- Inboard motor:
- Reduced unsprung mass.
- Motor is protected from vibrations and excessive shocks.
- Improved durability and packaging of electrical cables and coolant lines
- Configurations/packaging:
- Motor front/motor rear configurations for optimised packaging.
- Integrated Power Take Off (PTO) that can be configured for accessories such as driveline parking brakes, emergency steering pumps and exported power.
- Double wishbone suspension:
- Provides superior on and off-road performance, ensuring best in class safety, mobility, and drivability.
- Provides superior on and off-road performance, ensuring best in class safety, mobility, and drivability.
- Future proof:
- By maintaining common components across the T-9000 product range, vehicle electrification can be offered as an option with no change to suspensions and hubs.
- By maintaining common components across the T-9000 product range, vehicle electrification can be offered as an option with no change to suspensions and hubs.
- Timoney expertise:
- Access to driveline experts who will guide you through the design process.
- Driveline solutions, optimized by Timoney for your vehicle.
- Complete driveline solution from one supplier.
