Ecomix II CML 10 Transmission

ZF introduces its updated Ecomix transmission, the Ecomix II CML 10, which features an output torque of up to 62,000 Nm.

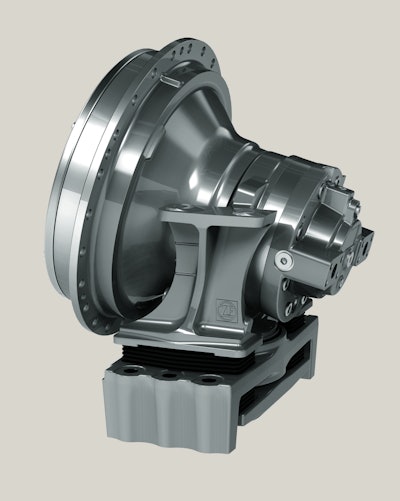

Zf Ecomix Ii Transmission 10758673
Zf Logo Std Blue 3 C

ZF presents the latest generation of the Ecomix range, the Ecomix II type CML 10 (Concrete Mixer Lowspeed), for concrete mixers with a drum capacity up to 10 m³.

  • Provides output torque of up to 62,000 Nm
  • Smaller, lighter, tougher, quieter, more flexible and easier to service than first generation of Ecomix transmissions
  • Approximately 24% lighter and 50% shorter than previous models
  • Features significant increase to output bearing strength, which leads to less sensibility at off-road operation
  • Elastomer units allow an increase of the axial run-out at drum bottom and an increase of misalignment of the drum
  • Updated bearing concept means installation angle is no longer dependent on drum size and drum filling
  • Installation angle up to 20 degrees is always possible
  • Acoustic and mechanic decoupling of drum and vehicle frame leads to considerable noise reduction during operation and improved driving comfort
  • Weight-optimized, low-speed-hydro motor and separate oil for transmission and hydrostatic as well as an improved accessibility help improve serviceability
  • Includes cassette seal instead of sealing collar for increased durability and lifespan
