TERRAMATIC TMT 09 and TMT 11 Continuously Variable Transmissions

The TERRAMATIC TMT 09 and TMT 11 transmissions from ZF provides continuously variable acceleration from standstill to maximum speed without interrupting power flow.

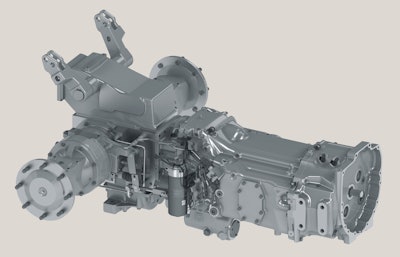

Zf Terramatic Tmt 09 11282974
Zf Logo Std Blue 3 C

ZF introduces its TERRAMATIC TMT 09 and TMT 11 continuously variable transmissions.

  • Features powershiftable shuttle shift (Power Shuttle), standstill control (Power Zero) and continuously variable acceleration from standstill to maximum speed without interrupting power flow
  • Provides driving speed between 0 to 40 km/h (optionally: 50 km/h) forwards and 0 to 20 km/h in reverse is using mode selection (Mode I: working mode; Mode II: transport mode) as well as a driving range selection
  • Mode and driving range selections are completely automated
  • Can be combined with two rear axles of different sizes
  • TMT 09 covers power range from 65 to 90 hp, whereas the TMT 11 extends up to 110 hp
  • Contains fewer components without compromising functionality
  • Includes vehicle controller which continually monitors all important operating parameters and controls them according to driver's demands, ensuring optimal performance between engine, transmission and vehicle
  • Includes integrated pump drive that can further increase efficiency through use of regulated axial piston pumps
