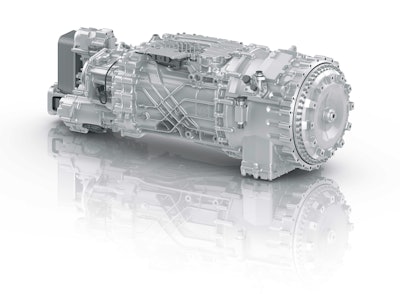

ZF TraXon Torque Transmission with Torque Converter Clutch

The ZF TraXon Torque transmission includes a torque converter clutch to provide more comfortable vehicle starting and maneuvering.

31 ZF TraXon Torque 56c5e535d8151
Zf Logo 660 4a Tx4a7lu Qu

ZF's TraXon Torque transmission is particularly suitable for heavy-load applications with a gvw of over 70 T, especially mobile cranes, special vehicles, and heavy goods transporters.

  • Combines basic TraXon transmission with a torque converter clutch as a starting component
  • Features hydrodynamic torque converter, torque converter lock-up clutch, and dry clutch installed upstream of the transmission
  • Hydrodynamic torque converter provides comfortable starting and maneuvering even when very high input torques are transmitted, eliminating jerking or wear
  • Integrated secondary retarder, which is also wear free, supports braking process
  • Torque converter is responsible for smooth starting and ensures input torques of up to 3,000 Nm are transferred in a well-dosed manner
  • Torque converter lock-up clutch closes as soon as starting process has been completed so that relatively fuel-intensive driving "in torque converter slip" is eliminated and driving power is transferred with hardly any loss
  • Dry clutch opens driveline temporarily for further gear changes
  • Secondary retarder provides braking torque of 4,000 Nm
  • Includes new peripheral and control unit concept for torque converter clutch (TCHD module)
  • Shared on-site control unit for Intarder and TCHD reduces complexity and wiring
  • Enables maneuvering in open converter operation
  • Pump for supply of hydraulic control unit and oil circuit, as well as cooling unit, ensure temperatures almost never reach critical threshold of 130 C
  • Does not require an additional external oil tank
  • Tank can be filled with 26.5 L of ZF's Ecofluid M oil upon request, making final oil fill easier
  • Higher mileages can be achieved by using Ecofluid M and the oil change intervals are extended, which leads to higher efficiency in service
