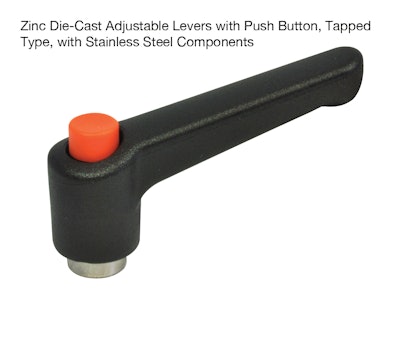

GN 303.1 Zinc Die-Cast Adjustable Levers With Push Button

J.W. Winco announces the availability of adjustable levers with push buttons which feature stainless steel components.

Gn303 1zincdiecas199c88 10323328
Winco Logo 2016 4c Large

J.W. Winco, Inc., a supplier of standard industrial machine components, announces it's offering series GN 303.1 Zinc Die-Cast Adjustable Levers with Push Button, Tapped Type, with Stainless Steel Components, available in inch and metric sizes.

  • For use wherever parts have to be clamped in a confined space or in a particular lever position
  • Insert connects to lever via serrations which can easily be disengaged
  • Pulling lever upwards disengages the serrations, allowing it to be swiveled to ideal clamping position
  • Serrations automatically re-engage when lever is released
  • Ergonomic releasing button allows for effortless release action in applications that do not require the lever to be disassembled
  • Handle is zinc die-cast and push button is nylon plastic
  • Insert and spring, as well as screw for push button, are stainless steel, European Standard No. 1.4305 (American Standard Series 303)
  • Handle is available in matte black pebble finish electrostatically applied powder coat, smooth finishes in orange, gray, silver, or red textured finish, chrome plated or uncoated
  • Button is available in black, orange or gray
  • Special bores and threads are available upon request, as is a version with steel components, series GN 303
