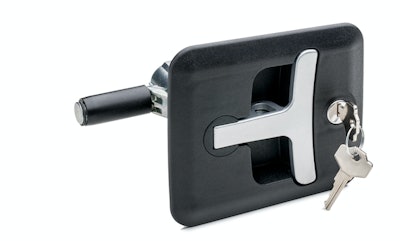

JW Winco Lift and Turn Compression Latch EN 5630

The Lift and Turn Compression Latch EN 5630 can be operated in two steps with an ergonomic, powder-coated T-handle.

Jw Winco
Winco Logo 2016 4c Large

JW Winco introduces the Lift and Turn Compression Latch EN 5630 for holding doors, covers and hatches closed.

  • Operated in two steps with an ergonomic, powder-coated T-handle in black or gray
  • Stroke of 5 mm (0.2 in.) is initiated on the rotating latch when folding T-handle in or out to generate required pressure against a door seal

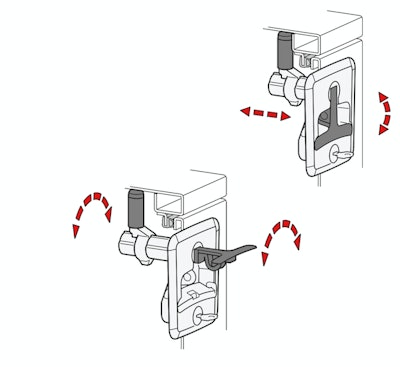

  • T-handle can be turned to left or right side in the folded-out position, moving rotating latch 90 degrees behind cover or door, allowing it to be opened
  • Rotating latch can be flexibly adjusted for frames between 13 and 75 mm (0.5 and 3 in.) thick, depending on the application
  • Two-stage movement secures closure against vibration
  • Handle can be locked in retracted position using supplied key to secure the lift and turn compression latch in place
  • Closure housing allows T-handle to be additionally secured with a padlock
  • Polyamide closure housing is supplied with four injection-molded bolts, including associated nuts, for nearly flush installation
  • Housing features permanently integrated silicone seal for protection class IP65, protecting against entry of dust and water
