SNAP-LINE Low Profile Swinghandles

DIRAK has expanded its line of swinghandles to include the low profile SNAP-LINE series.

August 22, 2011
Dirak Inc.

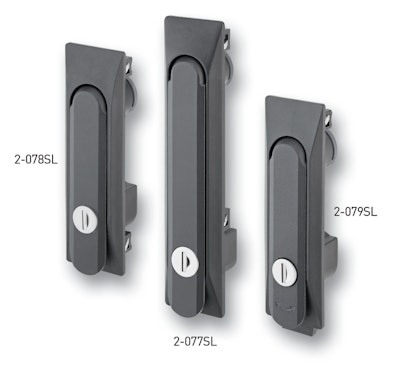

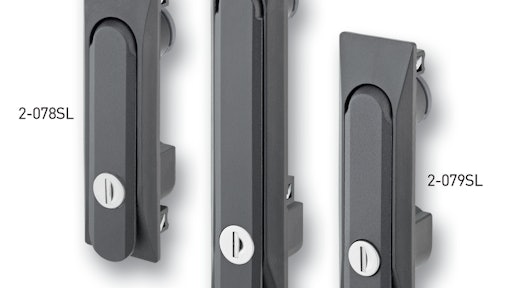

Swinghandlefamily 10331465

DIRAK has expanded its swinghandle product offerings to include a line of low profile SNAP-LINE Swinghandles for multi-point latching applications. The low profile product family consists of 2-077SL, 2-078SL, and 2-079SL.

  • Low-profile design for applications requiring limited protrusion off panel face
  • Supports aesthetics of overall cabinet design
  • Includes a stop feature, at 90 degrees, to prevent over-rotation of cam
  • Can be used on both left and right hand applications by simply reversing cam adapter and cam
  • Designed for applications within sealed area of housing
  • Provides integral, molded-in water and dust-tight seal in accordance with IP65 and DIN EN 60529 standards
  • Can be used with cams of locking depths 0.7 to 5.3mm
  • Shutter on lock cylinder prevents dust and debris from entering and damaging lock
  • Can be keyed alike with DIRAK 1333 lock system
  • Comes pre-assembled and incorporates DIRAK’s D-SNAP technology for quick installation without tools or mounting hardware
  • D-SNAP Technology eliminates concern of mounting hardware becoming loose over time, falling onto and damaging equipment inside enclosure
  • Applications include use for enclosures with access doors and panels requiring compression
