Trelleborg Sealing Solutions has launched the H2Pro range of sealing materials for every application of the hydrogen value chain, including a new ethylene propylene diene monomer (EPDM) rubber for high-pressure environments across a wide range of temperatures, and a unique thermoplastic polyurethane (TPU) for very low temperatures.
Designed to accelerate innovation for sustainable technology, H2Pro has solutions for the challenges of hydrogen production, transport and storage, and end-use. Proven to withstand challenging application environments, the materials are suitable for both high pressures and low temperatures, and resist permeation, and are therefore better able to withstand rapid gas decompression, while also demonstrating excellent wear and extrusion properties.
The range includes two new materials specially engineered for hydrogen applications. H2Pro EBT25 is a new EPDM for high-pressure environments across a wide range of temperatures, and Zurcon H2Pro ZLT, a TPU for very low temperatures.
The challenges include permeation and leakage, as hydrogen is the simplest element with the smallest molecular structure. Another is rapid gas decompression (RGD), where hydrogen in a high-pressure system can be absorbed into a seal. If the pressure in the system is suddenly relieved, gas trapped in the seal can expand, potentially causing the seal to blister and crack as the gas tries to escape. Finally, seals for different hydrogen systems need to withstand seriously tough environments, including high pressures of up to 1,000 bar/14.34 psi (for example in high-pressure valves) and extremely low temperatures down to -250 degrees Celsius/-418 degrees Fahrenheit (for example in liquid hydrogen storage and transportation).
All H2Pro materials are designed specifically for application-specific wear and extrusion properties and are validated to key industry standards in a range of challenging conditions typical of hydrogen environments. Trelleborg uses advanced testing rigs to assess materials for oxygen and ozone aging, hydrogen compatibility, leakage, permeation and the ability to withstand RGD, and compliance with relevant international standards.

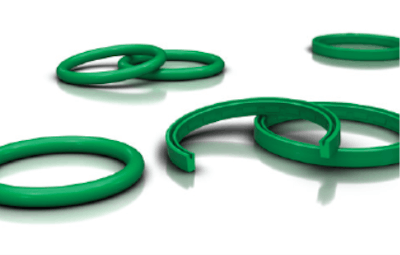

Zurcon H2Pro ZLT has low permeability and displays a superior ability to withstand RGD. It has a wide operating service temperature range, with outstanding low-temperature capabilities, displays excellent extrusion and wear-resistance properties, and is compliant with Regulation (EC) 79/2009, SAE J2600 and ANSI CHMC 2. It can be produced as O-Rings for static sealing on valves, filters, refueling nozzles, pumps, connectors and fittings, and as U-Cups for static and dynamic applications such as valve stems, actuators, and regulators.
H2Pro EBT25 demonstrates the ability to withstand RGD, and features low permeability, a wide operating service temperature range, 85 Shore A hardness and excellent extrusion resistance. It is compliant with Regulation (EC) 79/2009, SAE J2600 and ANSI CHMC 2, and can be manufactured as O-Rings for static sealing on valves, filters, refueling nozzles, pumps, connectors and fittings, and custom molded parts and frame seals for fuel cells and electrolysis equipment.
H2Pro materials are also available in a range of other compounds and seal profiles including:
- Turcon polytetrafluoroethylene (PTFE) and thermoplastic compounds for use as Varilip lip seals
- V-Stack seals for use in static and dynamic applications with cryogenically compressed hydrogen and liquid hydrogen (LH2)
- FKM seals for blue hydrogen
- Lower-hardness EPDM compounds and silicone compounds for lower-pressure applications
- Metal seals for static LH2 applications
- Wear-resistant composite bearings and piston rings for compressor applications
