Goodyear Develops Airless Spring Tire in Cooperation with NASA

Goodyear and NASA have collaborated on a tire, known as the Spring Tire, is an airless tire made of springs which is designed to carry heavy vehicles over further distances

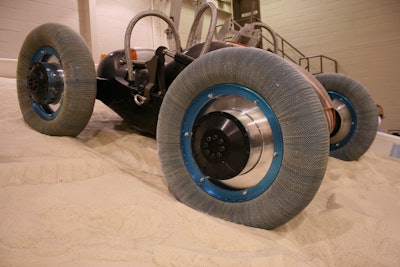

Goodyear Spring Tire Photo

The Goodyear ‘Spring Tire’, which was co-developed by The National Aeronautics and Space Administration (NASA), represents a future tire concept that could be used to explore the outer reaches of space, and possibly the most brutal terrains here on earth.

The Spring Tire offers 800 load bearing springs and is designed to carry heavy vehicles over much greater distances than the wire mesh tire previously used on the Apollo Lunar Roving Vehicle (LRV), which Goodyear also helped design and construct in 1971. The airless tire could allow for broad exploration and potential development of future outposts on the moon, or possibly allow vehicles to travel to places on earth where current tires could never go.

“This tire is extremely durable and very energy efficient,” notes Joe Lettieri, Goodyear’s lead researcher on the Spring Tire project. “The spring design contours to any surface providing maximum traction. All of the energy used to deform the tire is returned when the springs rebound, so it will not generate heat like a pneumatic tire.”

While a hard impact might cause a pneumatic tire to puncture and deflate, any trauma to the Spring Tire would likely only damage one of the 800 load bearing springs. Along with having this ultra-redundant characteristic, the Spring Tire has a combination of overall stiffness yet flexibility that allows off-road vehicles to travel fast over rough terrain with relatively little motion being transferred to the vehicle.

According to NASA and Goodyear engineers, development of the original Apollo lunar mission tires, and the new Spring Tire were driven by the fact that traditional rubber, pneumatic (air-filled) tires used on Earth have little utility on the moon. This is because rubber properties vary significantly between the extreme cold and hot temperatures experienced in the shaded and directly sunlit areas of the moon. Furthermore, unfiltered solar radiation degrades rubber, and pneumatic tires pose a high risk of deflation on the moon.

In 2010, Goodyear was honored with the R&D 100 award for its Spring Tire technology. Goodyear continues to run tests on Spring Tire in its R&D laboratories to determine potential applications for this technology.
