ZF CeTrax Lite and CeTrax Mid Electric Central Drives

The ZF CeTrax lite and CeTrax mid electric central drives feature an integrated design in which an electric motor, power electronics and transmission form compact unit with a shared housing.

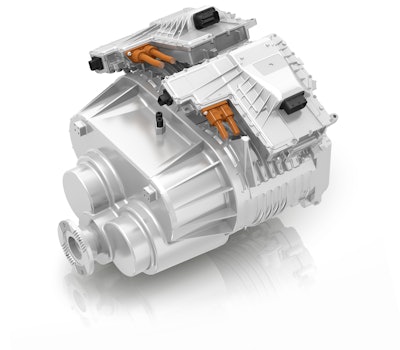

CeTrax mid
CeTrax mid
Zf Logo 660 4a Tx4a7lu Qu

ZF complements its portfolio of electrification solutions for commercial vehicles with two electric central drives, the CeTrax lite and CeTrax mid all-electric plug and drive solutions.

  • Features integrated design in which electric motor, power electronics and transmission form compact unit with shared housing
  • Power electronics do not need to be wired separately with electric motor
  • Compact design, enabling flexible installation in existing vehicle platforms, eliminating need for major changes to chassis or axles by vehicle manufacturers
  • Equipped with electric components used in the tried-and-tested central axle drive that ZF produces for passenger car applications, offering economically attractive solutions for commercial vehicle manufacturers
  • Mechanical components are all developed using requirements of commercial vehicle operation, including housing with optimized components and mounting points
  • Standard axles with current ratios can still be used in combination with both drives

CeTrax lite

  • Electric asynchronous traction motor offers peak power performance of 150 kW and torque of 380 Nm
  • Provides performance equal to conventional units in its segment
  • Module is a fully integrated system, housing electric motor as well as 1-speed transmission stage and power electronics
  • Weighs around 120 kg
  • For use in delivery vans, light commercial vehicles up to 7.5 tons

CeTrax mid

  • Features two electric asynchronous traction motors in a parallel design
  • Ensures powerful acceleration for vehicle weights of up to 19 tons
  • Peak performance lies at 300 kW
  • Two- stage powershift transmission produces torque of 760 Nm
  • Once again, fully integrated design allows easy installation in the vehicle
