FuelCAN Fuel Level Sender to SAE J1939 Transmitter

Murphy's FuelCAN fuel level sender translates an analogue fuel level signal into digital SAE J1939 CANbus data.

Murphy Fuelcan 2 10941357
Murphy20logotag Jpg 2012 10716165

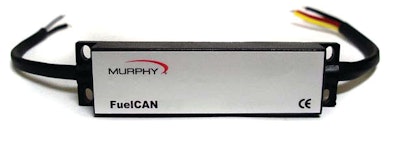

The FuelCAN fuel sender from Murphy is a compact interface that translates an analogue fuel level signal into digital SAE J1939 CANbus data.

  • Allows integration of standard senders into modern J1939/CANbus engine instrument and control systems
  • Features three inputs (only one of which is connected at any one time)
  • Input 1 is configured for use with Murphy ES series resistive fuel level senders
  • Inputs 2 and 3 can be used with fuel level senders having compatible resistance ranges
  • Can be factory-configured for use with other types of fuel level or resistive senders
  • Rear facing LED indicates input/CANbus status
  • Compact and light enough to be incorporated into wiring harnesses, but can also be surface mounted via four holes
  • Polycarbonate case is fully sealed in epoxy resin for high impact and environmental resistance
