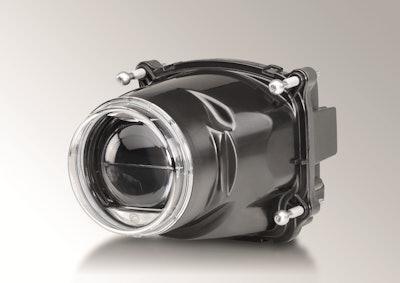

Hella L5570 90 mm Bi-LED Light Module

The Hell L5570 90 mm Bi-LED light module enables high and low beam functionality in a single unit.

HELLA 90mmBi LEDLightModule 574e02366d5c2
Hellainc 10055527

HELLA Inc. has introduced the L5570 90 mm (3.54 in.) Bi-LED light module.

  • Allows high and low beam light functions in one module without need for additional electronics or moving parts
  • Suitable for universal applications on a wide range of vehicles
  • Uses high performance LEDs to produce homogenous light output
  • Designed to be maintenance free and capable of operating for up to 15,000 hours
  • Features ultra-light, chip-resistant, 55 x 70 mm (2.17 x 2.78 in.) polycarbonate lenses and die-cast aluminum housings
  • Resistant to stress and wear
  • Offers low power consumption of 20W on low beam and 30W on high beam
  • SAE/DOT and ECE approved
  • Multivoltage capable, rated for operation in 9-32V vehicle electrical systems
  • Incorporates integrated driver electronics to replace 90 mm (3.54 in.) halogen modules or fist generation Bi-LED modules
