icotek KEL-DP 25 Version A and KEL-DP 32 Version A and B Cable Entry Plates

icotek's latest cable entry plates fit metric standard cutouts M25 and M32 and allow the insertion of cables with diameters of 5.2-8 mm.

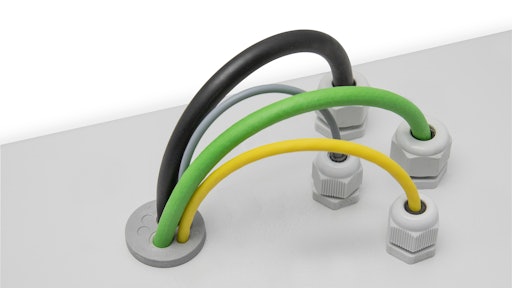

Pr Icotek Kel Dp
Logo Icotek With Slogan

icotek is expanding its range of cable entry plates with the articles KEL-DP 25 version A and KEL-DP 32 version A and B.

  • Fits metric standard cutouts M25 and M32
  • Up to 13 different cables can be inserted depending on the model
  • Possible cable diameter of cables to be inserted is between 5.2 and 8 mm (0.2-0.3 in.)
  • Membrane only gently needs to be pierced and the cable can be passed through
  • Punctured membrane which is no longer required can be closed again with the icotek plug ST-B
  • Can be installed tool free by simply snapping it into the cutout
  • Integrated spring bars also center the position of the KEL-DP
  • KEL-DP 25 is available in version A (for sheet thicknesses from 1.5-2.5 mm [0.06-0.1 in.])
  • KEL-DP 32 is available in version A (for sheet thicknesses 1.5-2.5 mm) and version B (for sheet thicknesses 2.8-4.0 mm [0.11-0.16 in.])
  • Construction height is 5 mm (0.2 in.)
  • Includes certifications such as IP65 (certified according to DIN EN 60529: 2000-09)

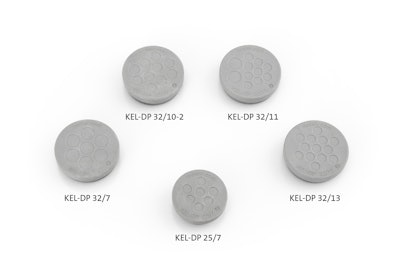

Pr Icotek Kel Dp Round 25 32
