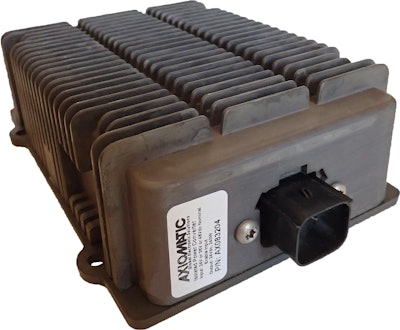

Axiomatic AX083204 Power Converter

The AX083204 power converter can be used in a current sharing configuration in various applications.

Ax083204 300dpi
Axiomatic
Axiomatic Logo 2019

Axiomatic releases the AX083204 power converter, an isolated power supply with wide ranging input voltage.

  • Accepts 24, 36 or 48V DC nominal input
  • Provides 24V DC, 240 W output power
  • Features input and output isolation as well as an enable signal
  • Typically provides efficiency of 92%
  • Includes thermal protection for over temperature, reverse battery as well as over- and under-voltage protection
  • Protections also include short circuit and overcurrent
  • Operates from -40-85 C (-40-185 F)
  • Can be used in current sharing configuration or as redundancy solution for a parallel application
  • Compliant for harsh electrical and outdoor environments with protection against surges, load dump, power transients as well as exposure to dust, water, humidity, and vibration
  • Applications include use in autonomous vehicles such as forklifts, industrial forklift automation and off-highway machine automation
