Veratron
Veratron's VL Flex Intelligent Battery Monitor Kit delivers real-time battery health and status to the smallest dashboard.
- Combines Veratron's Intelligent Battery Sensor and its VL Flex Instrument
- Additional components needed for fast and easy installations are included
- Measures and reports voltage, current and temperature
- Originates critical data such as state of charge and overall battery health
- Works for a single 12V lead, gel or AGM battery or a series of two 24V units
- 1.44 in. (3.66 cm) round gauge
- Scrolls through set pages to display a large numeric value and/or colored bar graph, using included remote
- Easily configured via Veratron's Intelligent Battery Monitor mobile app for Android and iOS to show dual data sets; alarms can be preset for trigger thresholds
- Built to IP67 standards with a PMMA lens, nine bezels are available to match virtually any dashboard décor
- Clamps onto the negative pole terminal and connects to the positive side through an integrated 3A fuse embedded into the included 19.6 in. (49.78 cm) wiring harness
- Power consumption of less than 50mA

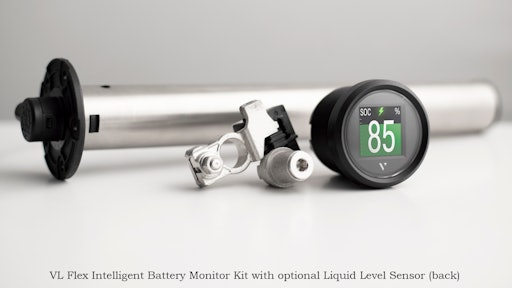

- With optional Veratron stainless steel dip-pipe Liquid Level Sensor, it's easy to expand the VL Flex Intelligent Battery Monitor Kit to monitor fuel or water tank levels
- Available in lengths from 5.9- 55 in. (14.99-139.7 cm) it has a unique compensation chamber that delivers accurate, and real-time measurements
- Includes built-in passive wireless antennas and only requires tapping the mobile device against the component to make an instant pairing connection
