TE Connectivity ICT Charging Inlets

The ICT charging inlets include safety features such as integrated PT1000 temperature sensors for enhanced temperature monitoring.

October 9, 2021

TE Connectivity - Industrial & Commercial Transportation business unit

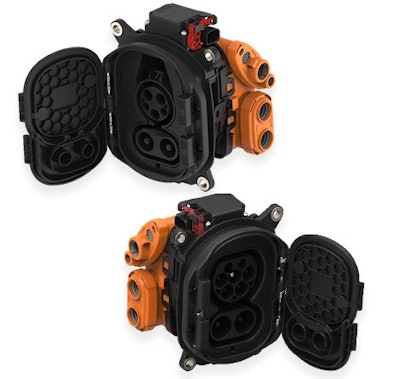

Ict Hems Charging Inlet 470x445

TE Connectivity

TE Connectivity has designed the ICT charging inlets specifically for the rigorous requirements of industrial and commercial vehicles, and are well suited for fast and secure charging.

Modular and highly customizable with various design options including cable exits to the left or right side
Capable of 10,000 mating cycles and charging at 250V AC (at 32 A) and 1,000V DC (at 200 A)
Features larger cable sizes than what is used in the automotive market – DC 70 mm² (0.11 in.²)/PE 25 mm² (0.04 in.²)/AC 6 mm² (0.01 in.²)
Safety features include an integrated actuator for end position sensing, integrated PT1000 temperature sensors for enhanced temperature monitoring and optional protective flaps to help keep out dust and moisture
LED charging indicator option available
Kits and pigtail cable assemblies in 1.5 m (4.9 ft.) or 3 m (9.8 ft.) lengths are available

Fill out the form below to request more information about TE Connectivity ICT Charging Inlets
