AX030500 and AX030501 I/O Controller

Axiomatic offers compact and rugged distributed I/O controls.

Ax0305005 10071677
Axiomatic Logo 2019

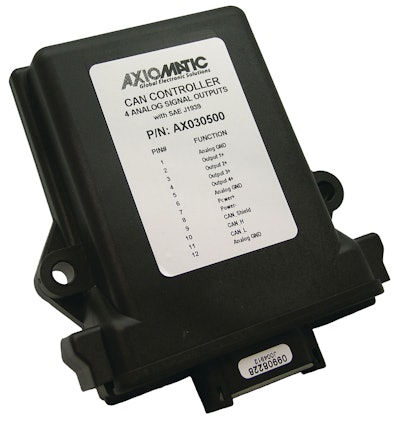

Axiomatic announces the release of a SAE J1939 or CANopen I/O control with four analog signal outputs, part number AX030500 (shown) and AX030501, respectively.

  • Four independent analog signal outputs (voltage or current)
  • User selectable output range from +/-10V or +/-20 mA, including: 0-5V; 0-10V; +/-5V; +/-10V; 0-20mA; 4-20 mA; and +/-20mA.
  • 12V/24V/48V DC input power (nominal) with surge protection
  • Galvanic isolation between power supply and analog signal output
  • Includes high speed CAN (ISO 11898-2) networking
  • Available with 250 kbit/s, 500 kbit/s or 1Mbit/s baud rates for CANbus
  • One SAE J1939 or CANopen port
  • IP67 packaging and connectors
  • Deutsch IPD EEC housing
  • Programmable with PC-based Axiomatic Electronic Assistant (J1939 only)
