Axiomatic Technologies Corporation Highlights Rugged Product Line for Construction and Mining Equipment

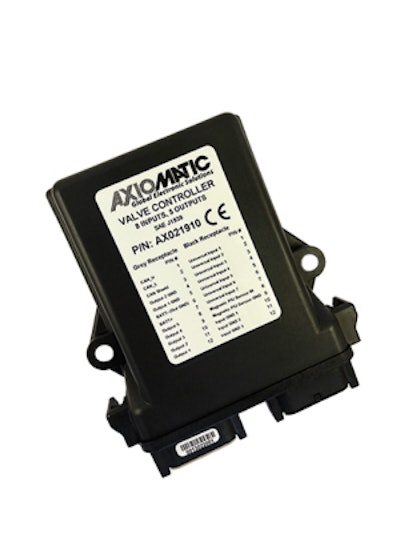

The AX021910 8 Input, 5 Output Valve Controller (8i5o) is designed for versatile control of up to four proportional outputs to directly drive coils or other loads. Its flexible circuit design gives the user a wide range of configurable input or output types. The sophisticated control algorithms allow the user to program the controller for a wide range of applications without the need for custom software. It can be operated as either a self-contained control system, driving the outputs directly from the on-board inputs, and/or it can be integrated into a CAN J1939 network of controllers. All I/O and logical function blocks on the unit are inherently independent from one another but can be programmed to interact in many ways.The AX141620 CAN isolator is a communication interface that allows for fast bidirectional data exchange between 9 CAN ports. It routes messages from Port X to Port Y based on message ID filter and can be configured as a switch to broadcast messages on all ports. It has configurable baud rate and a configurable termination resistor.
