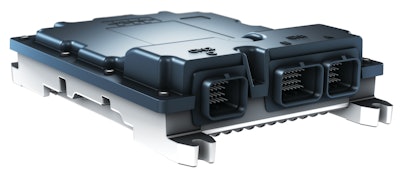

CT 200 and CT 300 SmartDrive Control Units

Poclain Hydraulics is introducing a range of CT 200 and CT 300 SmartDrive control units capable of offering functional security and operational safety in line with the most demanding standards.

• Large calculation capacity and large number of inputs and outputs allow efficient operation of hydrostatic transmissions
• Complies with the machine's safety requirements
• Complies with 2006/42/EC directive and ISO 13849-1
• E-certified electromagnetic compatibility and security architecture capable of Level d performance (PL-d according to ISO 13849-1) allow use for off- and on-road applications
• Withstands use in extreme conditions
• Operational over a temperature range of -40 to 85 C
• Able to function in the case of immersion under a meter of water (IP67 rating)
• Electronic architecture built around a 32-bit microprocessor and an 8-bit auxiliary microprocessor provide efficient design
• Calculation capacity is compatible with machine's safety, comfort and energy efficiency requirements, providing
• access to sophisticated software functions that guarantee efficient and accurate control of applications
• Three integrated CANbuses allow sharing of information (heat engine, hydraulic components, etc.), and configuring and diagnosing of machine
• Comes equipped with 42 high-power inputs and 23 high-power outputs
