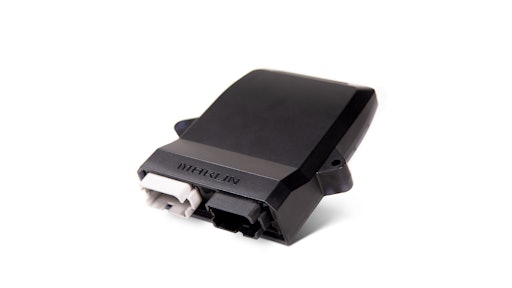

Marlin Technologies M-Flex Remote CAN I/O Controller

The 8-in/8-out M-Flex Remote CAN I/OController features fully encapsulated electronics for complete environmental protection.

August 11, 2020

Marlin Technologies Inc.

Marlin Technologies' 8-in/8-out M-Flex Remote CAN I/O Controller can be used in a variety of heavy-duty applications including construction, agriculture and other off-road equipment.

Designed for severe-duty, outdoor mobile applications
Withstands harsh temperatures, shock and vibration, moisture and electrical transients
For use in 12 and 24V applications
Includes low power sleep mode for applications requiring direct-to-battery connection; wake on digital input, CAN message or cycling power
Configurable inputs and outputs allow customization to application
Outputs have closed-loop current sensing for accurate control of proportional valves
5V, 500mA output for powering sensors
Slim, stylish case with custom OEM label option
Fully encapsulated electronics for complete environmental protection
Deutsch DT style connectors
Bi-color status indicators
IP67 and IP69K rated (with appropriate connector boots)
RoHS and CE compliant
Multiple programming options including standard controller programmed as remote I/O module for control by Master Control Unit (MCU) via CAN; Custom application programming by Marlin; and customer programming via C language
8-36V DC operating range, reverse polarity protected
CAN protocols include SAE J1939 CAN 2.0A and CAN 2.0B compliant, CAN Open, and NMEA 2000
Operating temperature range of -40-85 C (-40-185 F)
