Advanced machine controls are increasing in today's heavy-duty equipment as a means of improving operator performance and productivity. This is becoming especially important to overcoming the skills gap being faced by many industries in which heavy equipment is utilized.
Volvo Construction Equipment (Volvo CE) is among the several OEMs developing technologies to enhance the operator experience. It is doing so through connectivity and advanced machine controls capable of automating certain processes, such as digging. Here, the company examines the five key components enabling these machine control systems.
An inertial measurement unit (IMU) is an electronic device that measures and reports the specific force, angular rate, and sometimes the orientation of the thing it is attached to – for example, a bucket, boom and arm of an excavator.
An IMU works by detecting linear acceleration using one or more accelerometers and the rate of rotation using one or more gyroscopes. Some also include a magnetometer which is used as a heading reference. Typical configurations contain one accelerometer, gyro, and magnetometer per axis for each of the three machine axes: pitch, roll and yaw. So, in the case of an excavator, IMUs know when it swings its superstructure, lifts or digs – or is on the level or on a slope.
These IMUs relay positioning information to a central in-cab computer. This can help in building up a picture of how much activity has been undertaken, as well as improving safety. For example, setting limits on how deep an excavator bucket can dig (so it doesn’t hit underground services) or how high in the air it can reach (so it doesn’t hit overhead electricity lines or the roof of a structure.) An IMU also allows a GPS receiver to work when GPS-signals are unavailable, such as in tunnels, inside buildings, or when electronic interference is present.
2. IN-CAB TOUCHSCREEN TABLET COMPUTERS

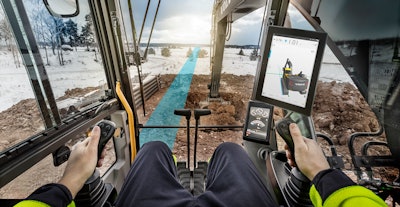

Just like in modern cars, construction machines increasingly come with electronic information screens. The best of these are actually powerful tablet computers capable of running in-cab applications that make the operator’s life simpler, safer and more productive. The Volvo Co-Pilot, for example, is a state-of-the-art touchscreen tablet that powers all Volvo Assist applications. The award-winning interface also generates job-specific documentation to record work undertaken.
Simple and intuitive, touchscreen tablet computers allow operators to set up projects in just a few touches by selecting the required job parameters. The operator then monitors progress of the job as it gets underway, with on-screen alerts indicating when pre-set parameters are met. The tablets are often 3G-compatible, allowing for the system to automatically and wirelessly receive software updates.
3. GLOBAL NAVIGATION SATELLITE (GNSS) ANTENNA
Global Navigation Satellite System (GNSS) refers to a constellation of satellites that together provide signals from space that transmit positioning and timing data to GNSS receivers. The receivers then use this data to determine location.
GNSS and Global Positioning Systems (GPS) work together, but the main difference between GPS and GNSS is that GNSS-compatible equipment can use navigational satellites from other networks beyond the GPS system. And more satellites means increased receiver accuracy and reliability.
GNSS antennas provide the reception of positioning information sent out by satellites in the orbit. A GNSS transceiver chip will process the received signals and then calculate the current position. A GNSS antenna should ‘see’ at least four satellites for the calculation to work. The frequency range for GNSS is in the 1.6 GHz and 1.2 GHz range.
4. GNSS RECEIVER
A GNSS receiver is an electronic device that receives and digitally processes the signals from a GNSS satellite constellation in order to provide machine position, speed and time data.
Fitted to the machine, GNSS receivers have been traditionally implemented in hardware form, but software GNSS receivers are catching up fast. A hardware GNSS receiver is a dedicated chip that has been designed and built with the sole purpose of being a GNSS receiver. In a software GNSS receiver, all digital processing is performed by a general purpose microprocessor. In this second approach only a small amount of hardware is needed, known as the frontend, which then digitizes the signal from the satellites. The microprocessor can then work on this raw digital stream to implement the GNSS functionality.
5. REAL TIME KINEMATICS (RTK)
RTK stands for Real-Time Kinematics and is a technique that uses carrier-based ranging and provides much more accurate positioning than using normal GPS systems – as accurate as 1 cm. The technique uses a base station to help iron out errors between the satellite and the machine.
The position is calculated by determining the number of carrier cycles between the satellite and the machine, then multiplying this number by the carrier wavelength. Even then, the calculated ranges include errors, such as atmospheric delays. To eliminate even these errors a complicated process called ‘ambiguity resolution’ is needed to determine the number of whole cycles. Despite being a complex process, high precision GNSS receivers can resolve the ambiguities almost instantaneously.
The position accuracy of the machine also depends on its distance from the base station and the accuracy of the corrections. Corrections are as accurate as the known location of the base station and the quality of the base station’s satellite observations. Where the base station is sited is important for minimizing environmental effects such as interference, as is the quality of the base station and machine receivers and antennas.
