Case releases Tier 4 Final TR270 compact track loader

The new Tier 4 Final TR270 Alpha Series compact track loader from Case includes EZ EH controls for improved operator control.

Case Tr270 Compact Track Loader Release
Case Construction Lloydfedders 10948919

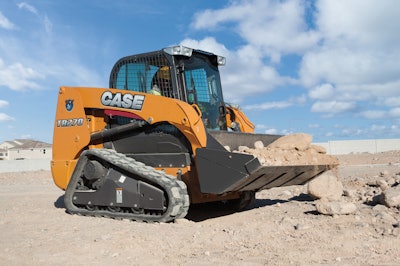

CASE Construction Equipment introduces the new Tier 4 Final TR270 Alpha Series compact track loader, an updated 74 hp model that increases bucket breakout force (7,270 lbs.), torque (232 ft.-lbs.) and hydraulic flow (standard: 24.2 gallons-per-minute [gpm]); high-flow: 32.4 gpm) compared to the previous model. Ideal for landscaping, residential construction and agricultural work due to its light weight (8,200 lbs.), low ground pressure, narrow design (less than 66 in.) and attachment versatility, the TR270 offers excellent performance in a package designed for easy transportation and minimal impact on the jobsite.

The updated TR270 weighs in at 8,270 lbs. with a rated operating capacity of 2,700 lbs. (2,800 lbs. with optional counterweight). The weight of the machine is perfect for most landscaping trailers. The radial-lift arm design is ideal for digging and pushing, and the machine’s hinge-pin height is ideal for loading and unloading trucks. A 19.5-gallon fuel tank extends runtimes and ensures that the machine can work the entire day without refueling.

Achieving Maintenance-Free Tier 4 Final with Particulate Matter Catalyst

The TR270 features a cooled exhaust gas recirculation (CEGR) engine with a particulate matter catalyst, which is made up of a diesel oxidation catalyst (DOC) and a high-efficiency flow-through filter. This solution is efficient and maintenance free as it does not require filter replacement. The DOC converts emissions into neutral gasses. The remaining particulate matter then passes through to the high-efficiency flow-through filter where it is stored and burned off through passive regeneration powered by the heat of the exhaust gas.

EZ EH Controls Provide Options and Flexibility

The TR270 offers a new EZ EH (electro-hydraulic) setup menu that features nine preset speed and control settings that can be adjusted on the fly. This allows the operator to match controls to their preference for comfort and greater productivity. A single rocker switch allows operators to switch between the CASE “H” operating pattern and ISO pattern controls. New handles with additional “feel points” improve controllability and feathering.

Dozer-style Undercarriage Offers Stability and Performance

All CASE Alpha Series compact track loaders feature a dozer-style undercarriage, designed for stability on steep slopes and excellent performance in muddy and sandy terrain. The rigid track frame features fewer moving parts than suspension track systems, making it more durable and easier to maintain.

Comfort for the Operator

The TR270 offers one of the widest cabs in the industry at nearly three feet, and comes with an optional enclosed cab that is fully sealed and pressurized against noise, dust and fumes. The cab-forward design provides best-in-class visibility with excellent site lines down to the bucket edge and curb lines, and to the rear of the machine. Ultra-narrow wire side screens, side lighting and a skylight further improve visibility. The low step and entry threshold makes it easy for the operator to get in and out of the cab.

Easy to Use and Maintain

The engine, filters and fill points are all located at the rear of the machine for quick access. The TR270 features CASE’s easy-tilt cab for convenient access to the drivetrain compartment. Hydraulic quick couplers allow operators to quickly change attachments from the comfort of the cab, while Connect Under Pressure (CUP) manifolds require no tools to connect or disconnect hydraulic lines.
