MG05 Motor

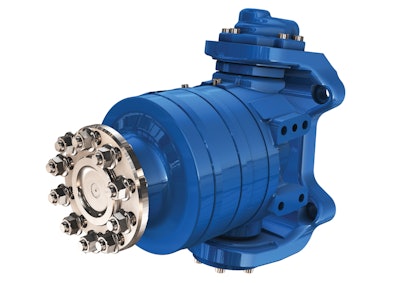

The Poclain Hydraulics MG/MGE05 motor features an integrated hydraulic pivot for easy integration.

Mg05 Front 11362477
Poclainhydraulics Newlogo 10840418

Poclain Hydraulics has completed its range of MG steerable-wheel motors with the introduction of the MG/MGE05.

  • Features displacement of 376 to 750 cc (22.94 to 45.77 cu. in.)
  • Built-in hydraulic pivot enables easy integration into hydraulic systems
  • Offers simplified management of hydraulic hoses independent of the motor’s rotational movements around its pivot axis
  • Includes C-Frame for direct mounting on a chassis, offering a turnkey solution for all vehicles fitted with a hydrostatic transmission
  • Highly modular, with the possibility of using all the bearing supports currently available on the MS range, including a drum brake
  • Features bearing support with a built-in wet parking brake, offering a maximum braking torque of 4,500 Nm (3,320 lbs.-ft.)
  • Available in single or symmetrical dual speed displacement
  • Provides high-speed and high-efficiency capabilities
  • Maximum pressure rating is 450 bar (6,530 PSI
