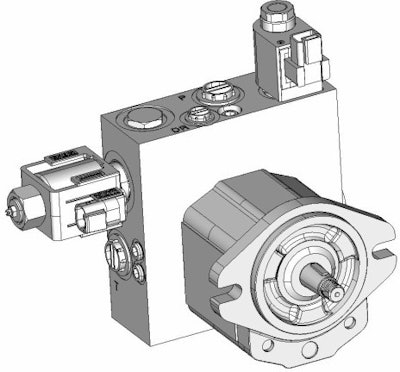

High Flow Reversing/Proportional Fan Drive Motor

Turolla has introduced the high flow reversing/proportional fan drive motor that is designed to provide significant improvements in flow capacity and pressure drop.

image 21 1 555deeb841f9f

Turolla continues to optimize fan drive motors to meet the growing demands of off-highway applications with the introduction of its high flow reversing/proportional fan drive motor.

  • Shorter in length and lighter in weight
  • Offers significant improvements in flow capacity and pressure drop
  • Provides long life in high-performance fan drive applications
  • Optimized valve design offers significant power savings by reducing pressure drop with flows up to 70 l/min (18.5 gpm)
  • Delivers pressure capability up to 250 bar (3,600 psi) and speeds up to 3,500 rpm
  • Features intermittent fluid temperature up to 110 C (230 F) with a minimum viscosity of 10 mm2/s (60 SUS)
  • Includes high-performance, pressure balanced aluminum gear motor
  • Integrated dust cover protects shaft seal
  • Durable steel manifold is optimized to provide short length
  • Proportional pressure relief valve modulates fan speed
  • Pilot-controlled directional cartridge valve reverses motor rotation
  • Features anti-cavitation valves to bypass flow during fan wind down
  • Optional shock valves available to absorb pressure spikes
  • Includes Deutsch connector DT 04 (IP67K) and optional DIN 43650 connector
  • PLUS +1 compliant
