Eaton X3 Medium-Duty Pump and Motor

The Eaton X3 medium-duty piston and motor is designed to help original equipment manufacturers improve machine control, productivity, and system life.

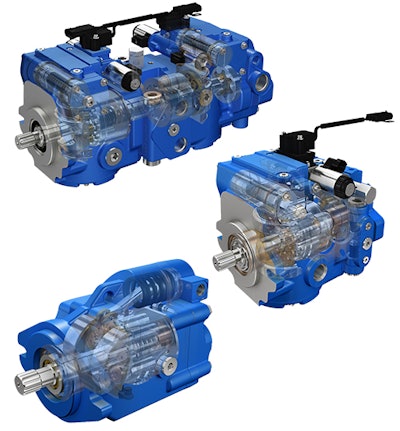

X3 Pump And Motor Family
Logo Eaton 10933210

Eaton launches its X3 medium-duty pump and motor portfolio, including a two-speed cartridge motor paired with single or back-to-back pump configurations.

  • Plug-in variable piston motor solution designed to help original equipment manufacturers (OEMs) improve machine control, productivity and system life
  • Offers a compact package for mobile applications where space is at a premium
  • Two-speed cartridge motor is available in 41 and 49 cc (0.041 and 0.049 L) displacements, providing more horsepower at the wheel while ensuring most mid-frame mobile propel needs
  • Built-in speed sensor port makes it easy to add a sensor to measure speed and direction
  • Uses a standard SAE B 2-bolt mount to fit into virtually any existing machine design and can also be positioned as a drop-in replacement for several motor configurations
  • Built for durability in tough mobile environments
  • Pairs with back-to-back or single pump options, which offers a 36% increase in the side load capacity over previous generations of Eaton pumps
  • Improved packaging better protects the control solenoids against damage
  • Pro-FX Ready integrated solution that is available with a variety of controls, including a non-feedback electrohydraulic control, a hydraulic remote control and a manual servo control
  • Combination with an Eaton HFX programmable controller allows active sensing and dynamic adjustment of parameters such as position and flow
