Single-Piston Air Disc Brake

WABCO's single-piston air disc brake feature a compact design and taper wear compensation.

March 30, 2012
ZF Commercial Vehicle Solutions (CVS)

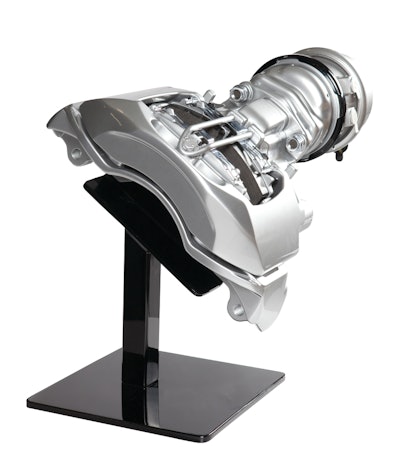

Wabco Panadbfortrailers 10685496

WABCO Holdings Inc.'s single-piston air disc braking technology (PAN) for commercial trailers combine compact design with single-piston technology and taper wear compensation.

  • Available in 16- to 25-in. rim sizes
  • Performs in trailer axle applications up to 23,500 lbs. (10.6 metric tons)
  • Provides high performance braking capabilities
  • Various lightweight models, such as the 22.5 in. PAN22, which weighs 79 lbs. (36 kilograms) including brake pads
Request More Information
Fill out the form below to request more information about Single-Piston Air Disc Brake
