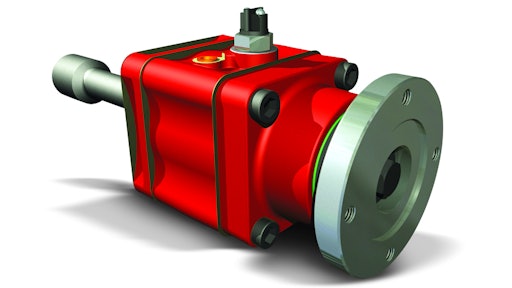

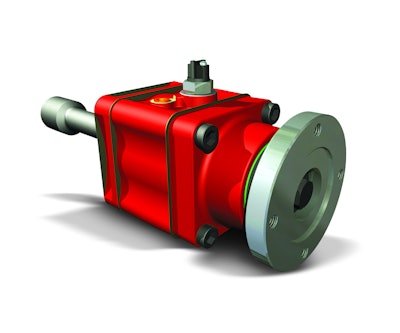

511 Series P.T.O.

Parker Chelsea has released its 511 Series P.T.O which features a coaxial, rear mount design.

511pto 10689242
Parker Logo Big 10933185

Power density is what the Parker Chelsea 511 Series P.T.O provides. The coaxial designed rear mount P.T.O. offers compact housing that helps eliminate clearance issues.

  • High capacity bearings and gear designs provide torque ratings up to 590 lbs./ft. or 800 Nm
  • No need to de-rate the P.T.O. for continuous applications
  • 17 mounting adapters allow it to fit on 131 transmissions
  • Features four shift options integrated into the housing for space savings
  • Cam lock shift mechanism provides positive engagement for each shift cycle
  • Four direct mount pump flange options come standard with Wet Spline design and provides increased P.T.O. and pump shaft life
