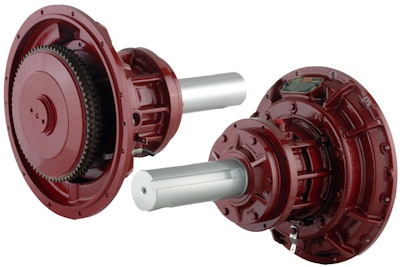

Twin Disc RC211 and RC311 Remote-Controlled PTOs

The Twin Disc RC211 and RC311 remote-controlled PTOs are hydraulically-actuated with self-adjusting dry clutches, utilizing 220–300 psi of engagement pressure.

Twd23662 X3h
271815 235998693085125 1305193 o 5490923d683ca

Twin Disc expands its innovative lineup with the remote-controlled RC211 and RC311 PTOs.

  • Virtually maintenance free
  • Well suited for difficult-to-service applications
  • Excels anywhere heavy-duty disconnect clutch is required, such as construction, mining, snow removal, forestry, agriculture, recycling and other severe applications
  • Hydraulically-actuated with self-adjusting dry clutches, utilizing 220–300 psi (15.2-20.7 bar) of engagement pressure
  • No pilot bearings, and main bearings are oil-lubricated for long life
  • Optional advanced control system can be used for soft-starting high-inertia loads
  • Suitable for side load and in-line applications
  • Available with SAE #1, SAE #2, & SAE #3 housing sizes
  • RC211 has two organic friction plates, while RC311 has three
  • Optional sintered iron plates are available to increase torque and horsepower capacity
  • Maximum input power and torque rating of RC211 is 247 hp (184 kW)/909 lbs.-ft. (1,232 Nm)
  • RC311 power and torque ratings are 371 hp (277 kW)/1,620 lbs.-ft. (2,196 Nm)
  • Bearings, shafts and other elements are engineered with liberal safety factors to maximize life under extreme operating conditions
