HVT R3 Powersplit Transmission

Dana's R3 hydromechanical variable transmission is a powersplit system designed to offer improved fuel economy.

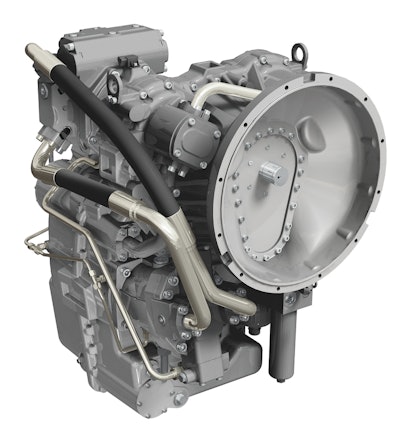

Danarexrothhvtr3 10698390

At INTERMAT 2012 Dana Rexroth Transmission Systems unveiled the R3 hydromechanical variable transmission (HVT), the first powersplit system resulting from the 50-50 joint venture between Dana and Bosch Rexroth AG.

  • Demonstrates fuel savings of up to 20%
  • For use with front end loaders, graders, forestry skidders and other off-highway applications requiring up to 265 kW (360 horsepower)
  • Improves productivity by enabling sensitive, precise vehicle positioning and stepless drive with no interrupted acceleration
  • Occupies same space within design envelope as conventional torque converter transmissions while allowing for engine downsizing
  • Uses only hydrostatic circuit at low vehicle speeds, allowing for quick acceleration and braking, precise low-speed maneuvering, and reversing without need of additional clutch
  • As vehicle speed increases, power splitter routes engine power through parallel path that uses mechanical elements, enabling acceleration with no interruption in tractive force
  • Optimizes operating point of diesel engine by decoupling engine speed from drive speed
  • Reduces maintenance costs by utilizing hydrostatic braking and wear-free directional reversals
  • Management via advanced electronic control unit (ECU) reduces complexity
