3MD Combine Harvester Drivelines

The 3MD combine harvester drivelines from ZF include two disc brakes mounted directly on the transmission for reliable braking.

January 17, 2014
ZF Friedrichshafen AG
Zf Grounddriveforharvesters 11296163
Zf Logo Std Blue 3 C

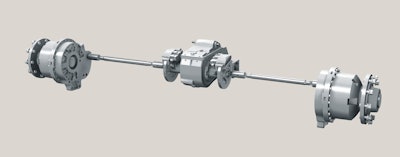

The ZF 3MD combine harvester drivelines are robustly designed and feature minimal maintenance demands.

  • Use single-stage (S-800) or two-stage (S-1050) wheel drive depending on weight of vehicle
  • Two-stage wheel drive is typically designated for vehicles with a higher GVW
  • Features two disc brakes, which are mounted directly on the transmission to produce a reliable braking effect with higher operational safety independent of the relevant field of application
