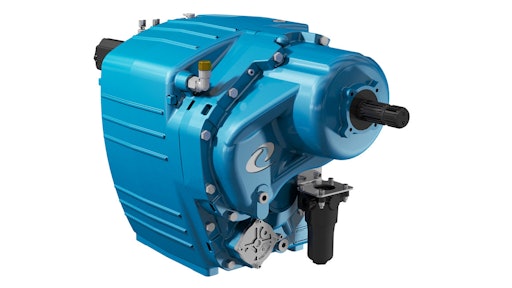

Comer 2- or 3-Speed Powershift Transmission

Comer Industries introduces its 2- or 3-speed Powershift transmission A-614 for high capacity feed mixers.

• Integrates mechanical transmission, hydraulic system for clutch management, and electronic control unit (ECU) into single system
• Allows gears to shift while machine is running
• End user can change final speed of augers without stopping tractor PTO, avoiding any waste of time while increasing fuel savings
• Gearbox works in combination with electronic control to manage multiple components and functions of the machine
• Sensors installed in the gearbox monitor temperature, input and output speed, and pressure
• ECU protects from improper shifting
• ECU provides simple analogic signals and features CANbus interface to submit sophisticated feedback to main feed mixer control unit
• Provides 30% fuel saving and reduction in mixing time through piloting gearshift from final machine’s panel and using best gear ratios at all times
• Low noise transmission due to helical gear design
• Designed for 10,000 hours of life
