Eaton Cummins Automated Transmission Technologies Endurant 12-Speed Automated Transmission

The Eaton Cummins Endurant transmission features a ground-up design for optimized weight, dimensions and features.

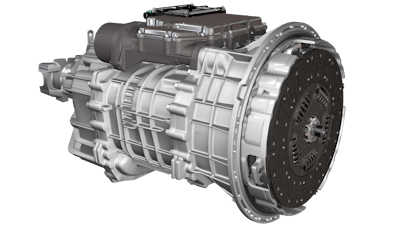

Endurant Passenger Front 1

Eaton Cummins Automated Transmission Technologies has introduced the Endurant 12-speed automated transmission – the lightest, most efficient 1,850 lb.-ft. capable heavy-duty transmission.

  • Designed for linehaul applications where weight savings and efficiency can add to a fleet’s bottom line
  • Weighs up to 105 lbs. (68.03 kg) less than competitive automated manual transmissions (AMTs)
  • Features sophisticated communication system between engine and transmission software
  • Provides performance and reliability, fuel efficiency, reduced maintenance, and driver comfort features
  • Ground-up design enable optimized weight, dimensions and features
  • Internal electrical system routing minimizes exposure and corrosion to wires and connectors for improved reliability
  • Smart prognostics feature provides clutch replacement notification to better plan maintenance scheduling
  • Transmission fluid pressure sensor notifies drivers of low oil levels to provide burn-up warranty coverage
  • Smooth and intuitive shift strategies enhance operator’s driving experience
  • Predictive shifting uses  look-ahead technology to execute shift decisions that improve fuel efficiency and provide additional driver comfort
  • Standard, 8-bolt PTO opening improves future resale value
  • Lowcruise RPM is well suited to support growing move to downspeeding
  • Available with IntelliConnect telematics capable system providing near real-time monitoring of vehicle fault codes, prioritizing critical events and providing accurate and comprehensive action plans
  • Maximum operating weight (GCVW) is 110,000 lbs. (49,895 kg)
  • Maximum horsepower is 510 hp (375 KW), and oil capacity is 16 pints (7.5 L)
