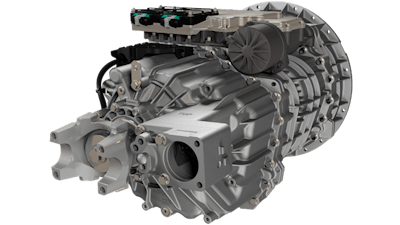

Eaton Cummins Dual PTO Endurant Automated Transmission

Eaton Cummins Automated Transmission Technologies has expanded the Endurant automated transmission portfolio to include a dual Power Takeoff (PTO) version of the 12-speed model.

• Provides customers with two PTO mounting locations: 8-bolt bottom mount and 4-bolt rear mount
• PTOs deliver combined 95 hp (70.8 kW) capability
• Single PTO model with 8-bolt bottom mount location also available
• Internal electrical system routing minimizes exposure and corrosion to wires and connectors for improved reliability
• Smart prognostics feature provides clutch replacement notification to better plan maintenance scheduling
• Transmission fluid pressure sensor notifies drivers of low oil levels to provide burn-up warranty coverage
• Smooth and intuitive shift strategies enhance operator’s driving experience
• Predictive shifting using look-ahead technology executes shift decisions that improve fuel efficiency and provide additional driver comfort
• Maintenance-free 430 mm (16.9 in.) self-adjust clutch requires no grease
• Capable of maximum 510 hp (kW) and 1,850 ft.-lbs. (2,508.3 Nm) of torque
• Available with IntelliConnect, a telematics capable system that provides near real-time monitoring of vehicle fault codes, prioritizes critical events, and provides accurate and comprehensive action plans by technical experts at Eaton
