TXR ConeJet Hollow Cone Spray Tips

The TeeJet TXR ConeJet hollow cone spray tips produce 80 degree hollow cone spray patterns with fine to very fine droplets.

October 9, 2013

TeeJet Technologies

Teejet Txrconejethollowconespr 11189029

Newimage 10147642

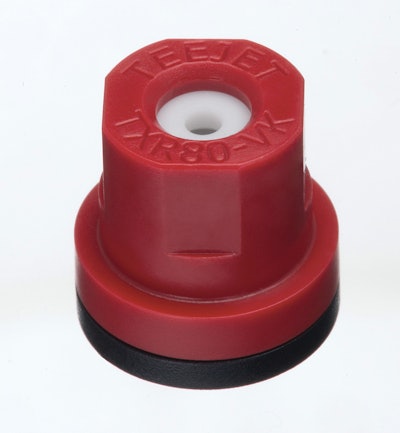

The TXR ConeJet hollow cone spray tips from TeeJet Technologies offers growers a tip option for air blast, directed and specialty spraying applications.

Produces 80 degree hollow cone spray pattern with fine to very fine droplets for thorough leaf coverage
Well suited for application of insecticides, fungicides, foliar fertilizers and related products
Available in 12 color-coded sizes based on tip flow rate for easy capacity identification
Range of capacities available from 0.046 to 1.45 GPM flow rates with a recommended operating pressure of 30 to 360 PSI
Low profile acetal (polymer) tip body provides minimal impact with foliage and chemical resistance
Orifice is made of high quality ceramic to provide superior wear-life in high pressure applications
Uses snap-fit backup plate to provide positive retention when handled in the field which can be removed tool-free for easy cleaning
Best suited for use with TeeJet 98450 Series Brass Rollover fittings or Quick TeeJet bodies and 114369-1-NYR cap

Fill out the form below to request more information about TXR ConeJet Hollow Cone Spray Tips
