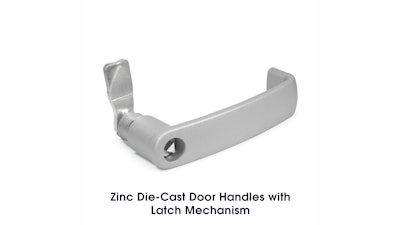

J.W. Winco Inc. announces it now offers GN 115.7 Zinc Die-Cast Door Handles with Latch Mechanism in metric sizes.
- RoHS-compliant
- For use when the application requires both a locking mechanism and a handle
- Rotary movement limited to 90 degrees—e.g. of the triangular spindle of type DK—shifts the key-bolt behind the doorframe
- Key-bolt is beveled, making the door-closing action easier
- Choice of 22 differently shaped catch plates provides a range of latching distances from 4 to 50 mm, or 0.157 to 1.97 in.
- Door handles are made of die-cast zinc, with a powder coated textured finish in either black or silver
- Lock hardware is zinc-plated steel with a blue passivated finish
- Available types of latch designs offered are triangular spindle, with square spindle A/F 7, square spindle A/F 8, screwdriver slot, and double bit
