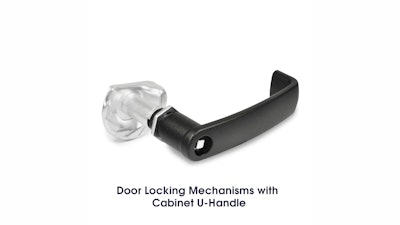

GN 119.3 Door Locking Mechanisms with Cabinet U-Handle

J.W. Winco's GN 119.3 Door Locking Mechanisms with Cabinet U-Handle are RoHS compliant and available in metric sizes.

October 20, 2014

JW Winco, Inc., A Ganter Company

JWWinco_DoorLockingMechanismswithCabinetU_Handle

J.W. Winco Inc. announces it now offers GN 119.3 Door Locking Mechanisms with Cabinet U-Handle, in metric sizes.

RoHS compliant
For use when application requires both a locking mechanism and a handle
Features integrated lock
Locking mechanisms have a drawing range of 10 mm
Turning door lock clockwise activates locking mechanism
U-handle is made of zinc die cast, with a black or silver powder coated textured finish
Cam is stamped sheet steel, with a zinc plated, blue passivated finish
Lock housing and spindle are zinc-plated steel with a blue passivated finish
Spacer bushing is aluminum

Fill out the form below to request more information about GN 119.3 Door Locking Mechanisms with Cabinet U-Handle
