NAF DualSync Gearbox

The NAF DualSync gearbox features two driving modes and provides smooth shifting.

Dual Sync
200px Logonafsmall 11109370

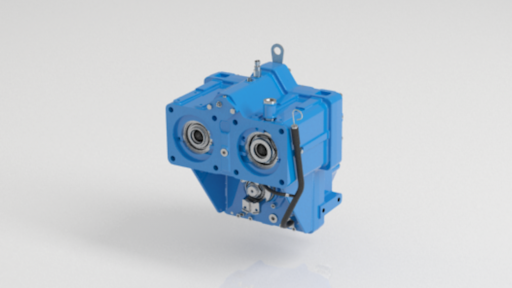

NAF AG has developed the mechanical DualSync gearbox which is driven by two hydraulic motors and offers full hydrostatic CVT functionality over the entire speed range.

  • Configuration enables two operating modes
  • Simultaneous use of both motors for high tractive power
  • Fuel-saving single-motor-mode for high driving speeds
  • Both drive motors are connected with different ratios
  • Motor M1 is used for higher driving speed
  • Motor M2 is responsible for high tractive power, operating in combination with motor M1
  • Motor M2 reaches maximum rpm at approximately 30% of the maximum vehicle speed and is then disconnected from drivetrain by a synchroniser
  • Motor M2 is hydrostatically deactivated and lowers its speed to 0 rpm
  • Motor M1 drives vehicle up to its top speed
  • Disconnecting motor M2 reduces system losses and optimizes tractive performance of machine depending on its driving speed, resulting in advantages such as fuel savings of up to 20%
  • Further benefits include robust and reliable mechanical design, improved machine control in comparison with torque converter systems, and driving diesel engine in its most efficient speed range
  • Provides smooth shifting without jerky interruptions for both, up- and downshift
  • Used in forestry applications up to 200 kW (268.2 hp)
  • Suitable for wide range of other applications such as in construction and material handling equipment
