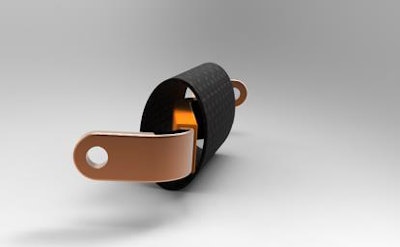

CrushShield 2448 enables simple installation over large connectors, brackets and contours with sharp angles, delivering protection where it’s most needed on the application. Shown here before shrinking.
Federal-Mogul Powertrain has launched its next generation textile sleeving for crash protection and impact resistance, CrushShield 2448.
- Available for heavy-duty and light vehicle applications
- Features new heat shrinkable design that absorbs and disperses energy during a crash, protecting sensitive vehicle components including air conditioning lines, fuel lines, hoses and high-voltage cables
- Provides superior abrasion resistance which prevents mechanical wear from nearby components that come into contact with each other
- Utilizes high performance, multi-layer textile design that enables it to dissipate energy in crash situations, while also providing excellent abrasion protection
- Shrink ratio up to 4:1 with minimum shrink temperature of 140 C (284 F)
- Enables simple installation over large connectors, brackets and contours with sharp angles, delivering protection where it’s most needed on the application
- Heat shrinking design enables sleeve to increase in density and toughness when fitted or “shrunk” around the component, maintaining its shape in extreme environments and preventing exposure of protected products
- Can cover multiple diameter applications with the same product, reducing need for additional customer part numbers
- Crash tests resulted in an increase in crash protection by more than 70-100%, depending on the application
- Tested using LV312-3 specifications
- Classified as class E( >50J) on shielded cable and Class F (>75J) for unshielded cable
- Far exceeded highest abrasion category G (≥ 30,000 cycles) when tested for abrasion according to LV312-3 specifications
