ZF TC 27 Transfer Case

The TC 27 transfer case, introduced at bauma 2019, enables increased engine output while saving fuel.

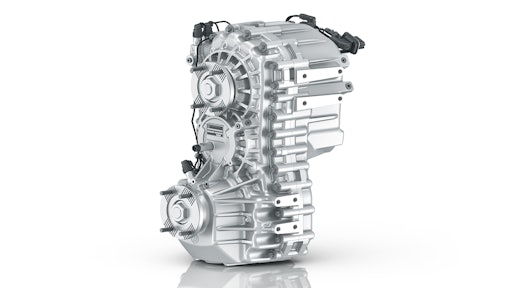

19 Transfer Case Tc27
Zf Logo 660 4a Tx4a7lu Qu

ZF introduces its transfer case TC 27, designed for demanding all-wheel drive applications.

  • Allows for increased engine output while saving on fuel
  • Wide variety of configuration options
  • Well suited for trucks, all-terrain cranes, dump trucks, articulated haulers and other special AWD vehicles
  • Can process maximum input speed of 3,200 rpm, enabling shorter axle-drive ratios at constant maximum speed
  • Input torque of 27,000 Nm (19,914.2 ft.-lbs.)
  • Power take-off rated to 8,500 Nm (6,269.3 ft.-lbs.)
  • Efficiency has been optimized to an extent that external oil cooler is no longer required for many applications, further simplifying installation space and cost
  • Weighs around 100 kg (220.5 lbs.) less than predecessor due to sleeker housing and use of aluminum
  • Weight savings can reduce fuel consumption or increase load capacity
  • Optional sensors which measure oil level and temperature enable driver to see current operating state
  • Other software functions can be executed via a control unit if required
  • Can be combined with ZF’s Automatic Drivetrain Management (ADM) which controls all inter-axle and inter-wheel differential locks within vehicle automatically to improve driving stability and prevents damage to driveline due to incorrect usage
  • Reduced number of mounting points simplify installation
  • Includes only two suspension points where previously there were three
  • New central connectors make it impossible to mix up pneumatic and electrical connections
  • Comes in two different sizes to respond to individual vehicle needs
  • S variant offers 300 mm (11.8 in.) of shaft distance, while L variant has shaft distance of 396 mm (15.6 in.)
