Dana Heavy-Duty Drivetrain for Rough-Terrain Cranes and Terminal Tractors

The Spicer 246 heavy-duty steer axle and Spicer C3300 remote torque converter are designed for rough-terrain cranes with lift capacities from 83-110 tons.

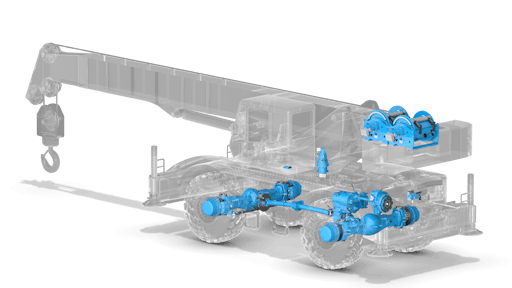

Dana New Rough Terrain Crane System Feb 2021
Dana Inc.
Adiam 5 10948696

Dana Incorporated introduces a drivetrain for rough-terrain cranes with lift capacities from 83-110 tons (75-100 tonnes) and terminal tractors. The Spicer 246 heavy-duty steer axle and Spicer C3300 remote torque converter are offered as part of a complete drivetrain solution for rough-terrain cranes.

  • Delivers premium performance through improved gradeability and travel speeds
  • Offers higher efficiency in the field, increased productivity, and reduced operating costs

Spicer 246 Heavy-Duty Steer Axle

  • Monolithic axle design and high integrity seals deliver performance in severe working conditions
  • Optimized steering geometries to minimize slippage
  • Single universal joint design with outboard planetary gears provides high output torque and high-capacity braking with low drag at travel speeds
  • Available for OEM field testing
  • Can be adapted for use with airport ground support vehicles where it can be configured with optional wet brakes

Spicer C3300 Remote Torque Converter

  • For rough-terrain cranes
  • Optimized for engines up to 195 kW (260 hp)
  • Can be packaged with Spicer remote transmissions
  • Include three large pump drives for implements
  • Available with an optional lockup that improves efficiency while providing higher braking effort during downhill operation
  • New converter wheel sizes configured to optimize the performance of today’s low-RPM engine designs
  • Enables lower heights for fifth wheels
