Omni Powertrain Technologies Electric Drive

Omni Powertrain Technologies introduces an electrified drive developed for driven axle applications with commercial vehicles, terminal tractors, and railcar movers.

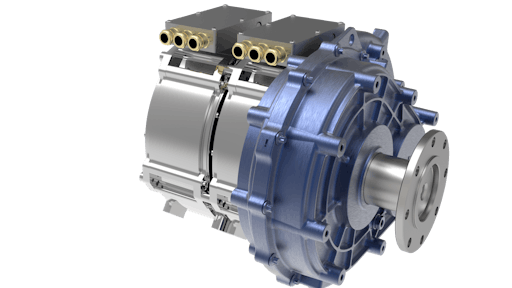

• Features Omni’s F12L gearbox coupled with its tandem Magelec M27D motors
• Gear ratios available with the F12L are 1:1, 2:1, 2.97:1 and 3.94:1
• Gearbox is rated for maximum input torque of 1,200 Nm (885.07 ft.-lb.) and a maximum input speed of 7,500 rpm
• M27D motor is a high voltage axial flux design capable of 192 kW (257.48 hp) continuous power at 600V and peak intermittent torque at 1,160 Nm (855.57 ft.-lb.)
• Motor is cooled with a water-ethylene glycol mix and conforms to international standard IEC 60034
