Micro Connect Series

January 11, 2010
Deutsch Industrial Connectors
Microconnectseries 10058677
Te Connectivity Logo 10933221

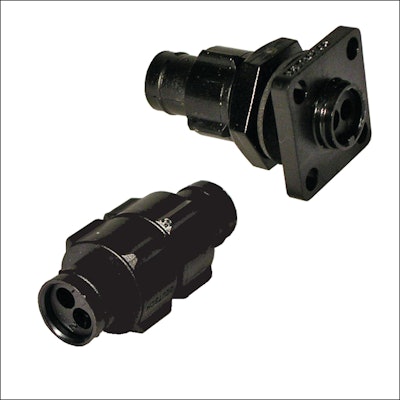

Deutsch Industrial releases its Micro Connect (IMC) Series of unsealed, high pin density, small wire gauge connectors designed for high performance and critical applications.

  • Available in 2 shell sizes and 7 pin arrangements covering wire gauges from 16 to 26 awg
  • Not environmentally sealed, but with the recommended adhesive and back fittings, IMC connectors are sealed to IP67
  • Receptacles can be used in-line or are available with an integral flange for mounting
  • Gold plated contacts, making them ideal for low voltage and data transmission applications
  • Gold pins are available in extended lengths for use in PCB applications
  • Meet UL94 Class V-O flammability requirements
