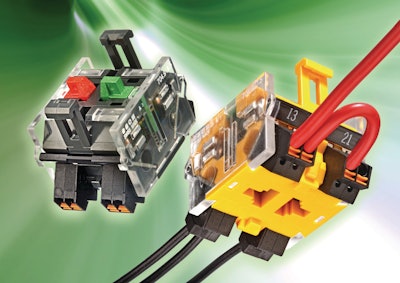

EAO Switch Corp. is offering a spring terminal connector technology for the popular Series 04 switch range. The Series 04 PIT (push-in terminal), which features a spring terminal connection from Phoenix Contact, reduces assembly times by up to 70% compared to screw terminals.
- High resistance to vibration
- Cable connection is accomplished without any tools at all
- Depending on the application, not even bootlace ends (core-end sleeves) are needed
- PIT offers protection against contact according to IP20
- Upgraded with a snap-action switch element (gold/silver), a slow-make element (gold/silver) and a lamp block; elements are stackable, providing the flexibility to use up to six contacts per switch
- Push In Terminals connect to any of the Series 04 actuators, including square and round pushbutton versions, two- or three-position lever switches, key lock switches, emergency-stops and large-headed buttons
- Front protection IP65
- Rated 500v AC
- Fits into 22.5 mm mounting holes (raised mounting) or 30.5 mm round and square cut-outs (flush mounting)
- Operating temperature is -25 to 55 C
