M12 Connectors With Hexagonal Locking Ring Nut

Binder-USA makes improvements to its M12 connectors to include a hexagonal locking ring nut.

May 9, 2011

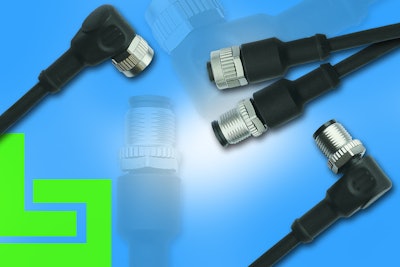

M12hex 10263877

Binder-USA, a global manufacturer and supplier of connectors and cordsets, announces the addition of a knurled and hex threaded locking ring nut to the M12 Series 763 and 766 overmolded connectors. The M12 connectors are ideally suited for industrial network and sensor applications.

Allows tightening with a torque wrench to ensure proper mating
Seals to an IP68 rating
Male and female cordsets are available in standard lengths of 2 m and 5 m
Mating receptacles and field-attachable cable connectors are offered for a complete connecting system
